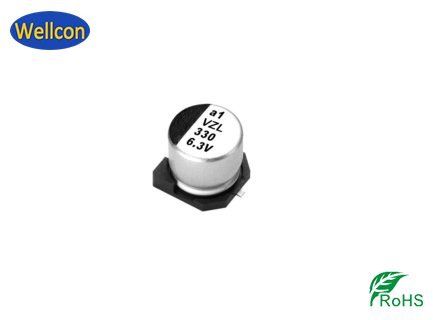

VZL-55~+105℃
2,000 Hrs
Low ESR
High CV-
— VZL —
Features
• 4φ ~ 10φ, 105℃, 2,000 hours assured
• Large capacitance with ultra low impedance capacitors
• Designed for surface mounting on high density PC board
• RoHS Compliance
查看详情立即咨询PDF下载

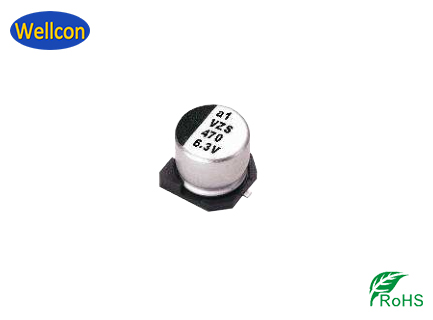

VZS-55~+105℃
2,000 Hrs
Ultra Low ESR
High CV-
— VZS —
Features
• 5φ ~ 10φ, 105℃, 2,000 hours assured
• Low impedance 30 ~ 50% less than VZH series
• Large capacitance with ultra low impedance capacitors
• Designed for surface mounting on high density PC board
• RoHS Compliance查看详情立即咨询PDF下载
VLV-55~+105℃
5,000 Hrs
Low ESR
Anti-vibration-
— VLV —
Features
• 12.5φ ~ 16φ, 105℃, 5,000 hours assured
• Suitable for automotive application
• Peak acceleration: 50G / 30G
• RoHS Compliance
查看详情立即咨询PDF下载
VUA-40~+125℃
High Temp
Usage-
— VUA —
Features
• 6.3φ ~ 18φ, 125℃, 1,000 ~ 2,000 hours assured
• Chip type high temperature range, for +125℃ use
• For automobile modules and other high temperature applications
• RoHS Compliance
查看详情立即咨询PDF下载

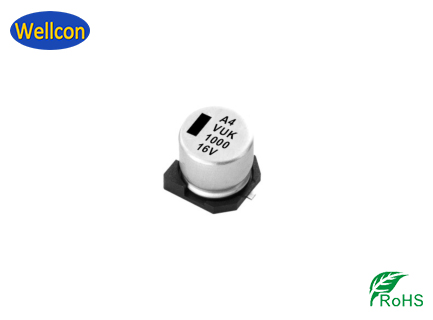

VUK-40~+125℃
High Temp
Usage
5,000 Hrs-
— VUK —
Features
• 12.5φ ~ 18φ, 125℃, 5,000 hours assured
• Chip type high temperature range, for +125℃ use
• For automobile modules and other high temperature applications
• RoHS Compliance
查看详情立即咨询PDF下载

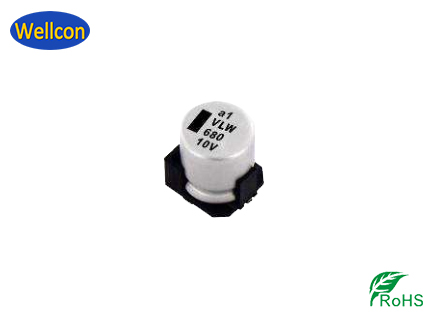

VLW-40~+125℃
High Temp
Usage
Anti-vibratio-
— VLW —
Features
• 12.5φ ~ 16φ, 125℃, 2,000 hours assured
• Suitable for automotive application
• Peak acceleration: 50G / 30G
• RoHS Compliance
查看详情立即咨询PDF下载
VEB-40~+85℃
Bi-polarized-
— VEB —
Features
• 4φ ~ 6.3φ, 85℃, 2,000 hours assured
• Vertical chip type miniaturized
• Bi-polarized capacitors for 5.5 mm high capacitors
• Designed for surface mounting on high density PC board
• RoHS Compliance
查看详情立即咨询PDF下载

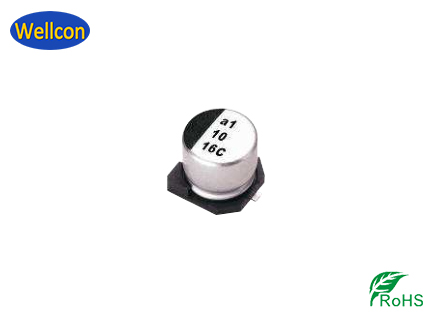

VEC-40~+85℃
Low Leakage
Current-
— VEC —
Features
• 4φ ~ 6.3φ, 85℃, 2,000 hours assured
• Vertical chip type miniaturized for 5.5mm, high capacitors
• Low Leakage Current Lead free reflow soldering is available
• Designed for surface mounting on high density PC board
• RoHS Compliance
查看详情立即咨询PDF下载
LHA-25~+85℃
High Speed
Charge / Discharge
50 Million Times-
— LHA —
Features
‧Endurance with ripple current at: 85℃, 5,000 hours
‧High speed charge-discharge
‧Suitable for high frequency regenerative voltage for AC servomotor,general inverter
‧Suitable for equipment used at voltage fluctuating area and rectifier circuit of voltage doubler
‧Application of charge-discharge DC voltage for 50 million times
‧RoHS Compliance查看详情立即咨询PDF下载
